Brand Name: S.M.S.L
PCM Sampling Frequencies: 44.1 kHz
PCM Sampling Frequencies: 48 kHz
PCM Sampling Frequencies: 88.2 kHz
PCM Sampling Frequencies: 96 kHz
PCM Sampling Frequencies: 176.4 kHz
PCM Sampling Frequencies: 192 kHz
PCM Sampling Frequencies: 352.8 kHz
PCM Sampling Frequencies: 384 kHz
PCM Sampling Frequencies: 705.6 kHz
PCM Sampling Frequencies: 768 kHz
Type: Desktop
DSD Sampling Frequencies: 2.8224 MHz (DSD64)
DSD Sampling Frequencies: 11.2896 MHz (DSD256)
DSD Sampling Frequencies: 22.5792 MHz (DSD512)
Material: Metal
Outputs: 6.5 mm
Outputs: Balanced Out
PCM Word Length: 16-bit
PCM Word Length: 24-bit
PCM Word Length: 32-bit
Inputs: USB Type-A
Inputs: Optical (SPDIF)
Inputs: Coaxial
Model Number: M500
Input Format: 65/125/290/570 mW
Dimensions (W x H x D): 197*88*85 mm
D/A Converter: ES9038PRO
WIFI: No
USB Compatibility: Windows 7
USB Compatibility: Windows 8
USB Compatibility: Windows 8.1
USB Compatibility: Windows XP
USB Compatibility: Windows Vista
USB Compatibility: ios
USB Compatibility: Android
USB Compatibility: osx
USB Compatibility: None
Bluetooth: No

---SpecificationsSplit---

Features:

Name: SMSL M500 HiFi Audio ES9038PRO/ES9311 DAC Headphone Amplifier AMP
Brand: Sales
SKU: smsl-m500-hifi-audio-es9038pro-es9311-dac-headphone-amplifier-amp
Availability: InStock

Supports MQA decoding; The top performance D/A chip ES9038PRO from ESS Technology;

The high-performance power supply chip ES9311, the noise of ES9311 is as low as 1uVrms, to push ES9038PRO to the limit;

XMOS XU-208, true 32bit audio processing, supports DoP and Native DSD, and reaches 32bit/768kHz and DSD512;

Ultra-low phase noise and optimized clock processing circuit are used to achieve ultra-low clock jitter;

All inputs support DSD streaming, including coaxial and optical (DoP64);

Independent headphone volume design, does not interfere with the preamp volume;
Special design of discrete components high current headphones amplifier for higher damping factor;

Use tempered glass display panel for higher light transmission and longer service life;
Built-in shielded, low noise power supply processing, while improving power efficiency, lower power consumption;

High quality gold-plated input and output jacks;

3 high-end dual op-amps OPA1612 and a lot of audio grade components are used;
2.19 inch LG TFT LCD display;

JAS Hi-Res certification;

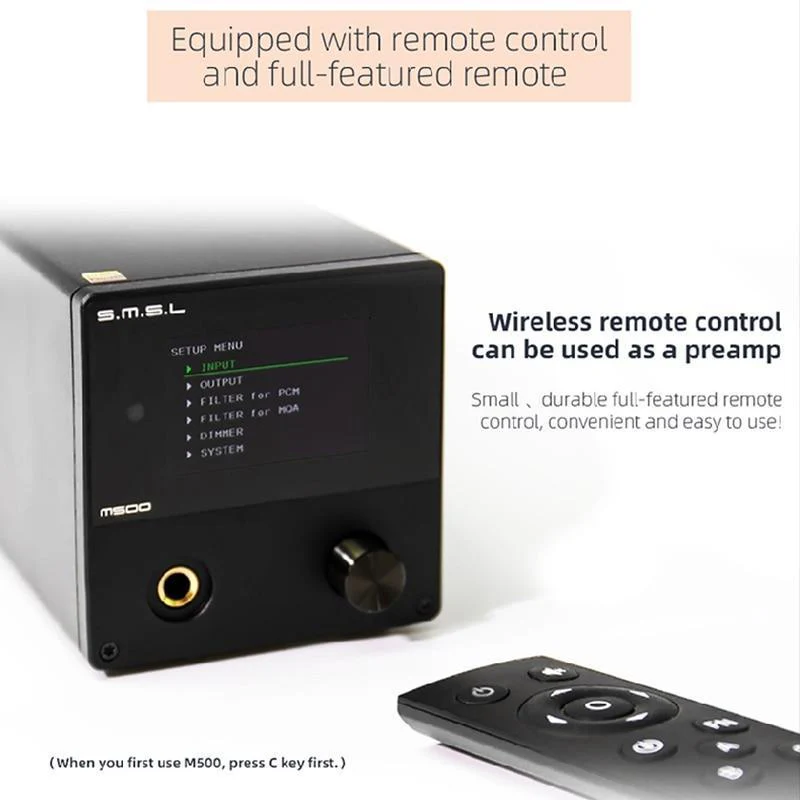

Equipped with remote control and full-function remote control.

Specifications:

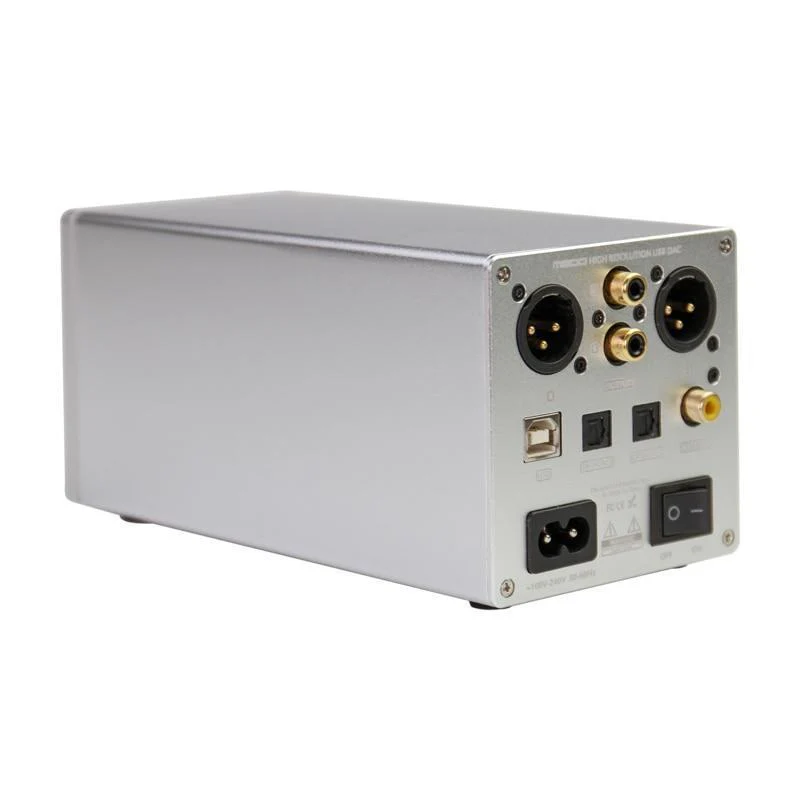

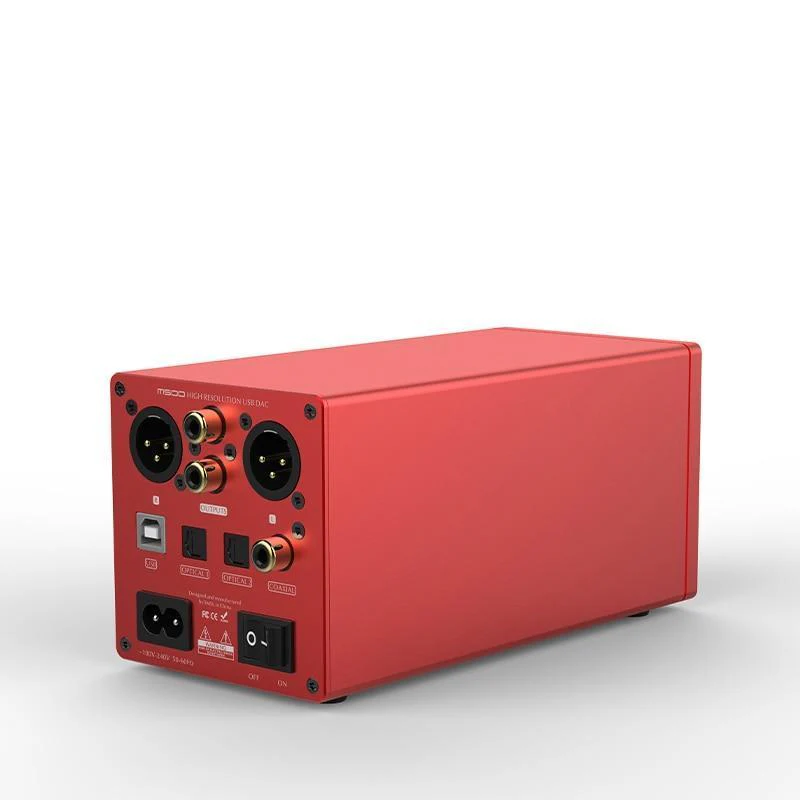

Input： USB / Opticalx2 / Coaxial
Output ：RCA Headphone Amplifier/ RCA /XLR
THD+N ：0.00015%
Dynamic range ： XLR 125dB
RCA 120dB
SNR ：120dB
USB transmission ：Asynchronization
USB compatibility：Windows 7 / 8 / 8.1 / 10, Mac OSX10.6 or Later、Linux
Bit depth ：USB 1bit， 16 ~ 32bit
Optical / Coaxial 1bit， 16 ~ 32bit
Sampling rate ：USB PCM 44.1 ~ 768kHz
DSD 2.8224 ~ 22.5792MHz
Optical / Coaxial PCM 44.1 ~ 192kHz
DSD DSD64(DoP)
Headphone amplifier output power：570mW(32Ω)
290mW(64Ω)
125mW(150Ω)
65mW(300Ω)
Power Consumption ：5W
Standby power ： <0.5W
Size ： 85x88x197mm (WxHxD)
Weight ：0.91kg
